2PCS SG90 9g Servo Motor Micro Servo Metal Geared Motor Kit Mini Servos for RC Robot Helicopter Airplane Controls Car Boat with Cable (SG90)

SpecificationModel: SG90Weight: 9gStall torque: 1.8kg/cmOperating speed: 0.1sec/60degreeOperating voltage: 4.8VTemperature range:0℃ ~ +55℃Dead band width: 10usMaximum rotation angle: 180 degreesGear medium: nylonWorking mode: SimulationCircuit connection:Yellow line (signal line)Red line (power line)Brown (ground)Advantages of metal gears and gear mandrels:Stronger force-bearing capacity, not easy to deform;Easy to turn;High hardness and abrasion resistant;Longer service life;Electrical SpecificationRunning current(at no load)400±30mA(4.8V)500±30mA(6V);Stall torque(at locked)2.0±0.20kg·cm(4.8V)2.2±0.20kg·cm(6V);Stall current(at locked)1300±40mA(4.8V) 1600±50mA(6v);Idle current(at stopped)6±1mA(4.8V) 6±1mA(6v);Running life(at no load)>350000 Turns(4.8V)>320000 Turns(4.8V);Package includes2 x SG90 9g Micro Servos

• Interface Type --- Compatible with JR & Futaba interface;compatible for Arduino with high efficiency.

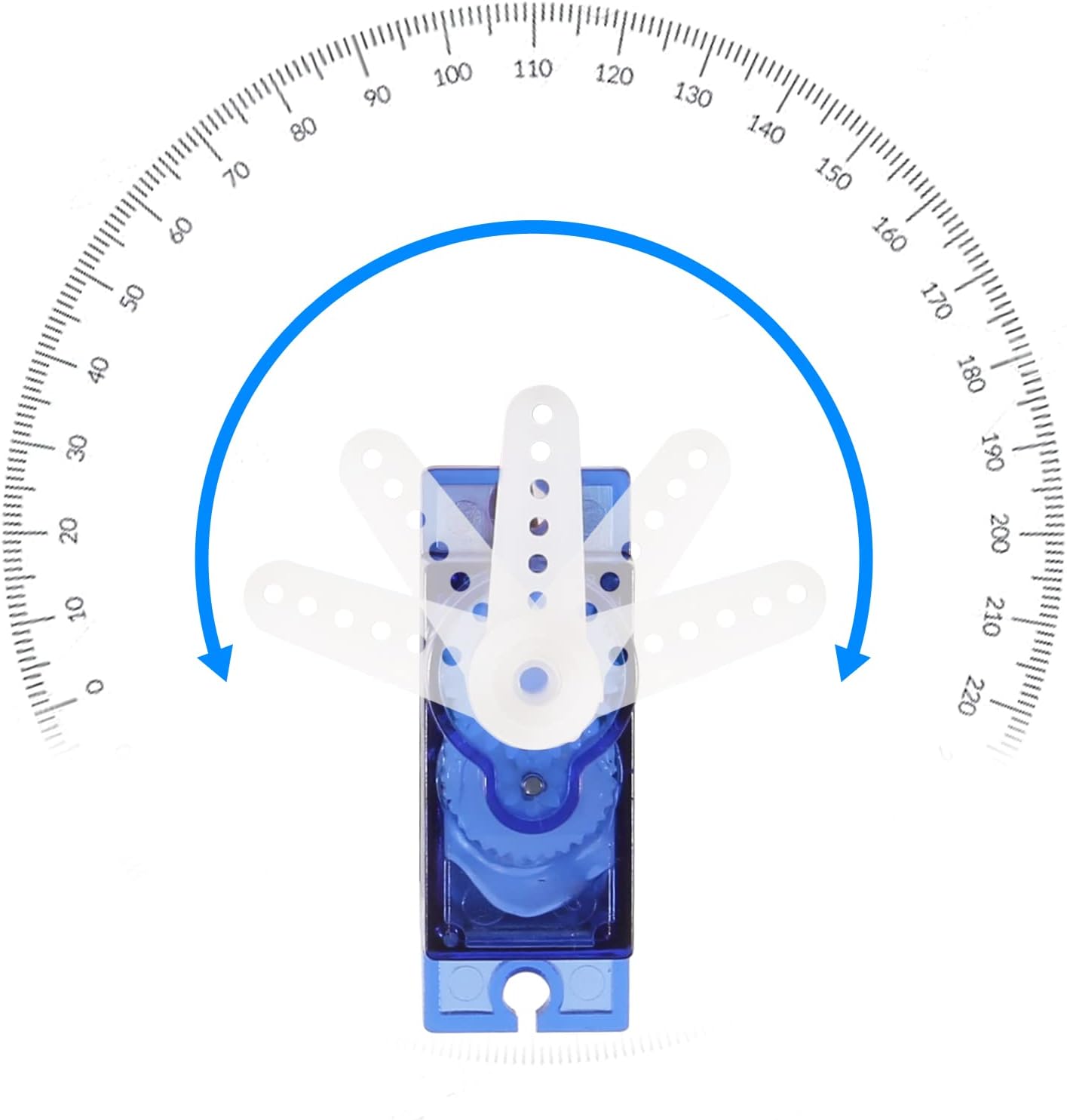

• No Load Running Speed --- 0.09±0.01 sec/60° at 4.8V Rotary Angle: 120°,Stall Torque (4.8V): 17.5oz /in (1kg/cm),dead band width: 7usec ,analog controller Operating voltage: 4.8V～6.0V.
• 3 Wire Interfaces--- The connections as follows: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.
• Widely Used --- SG90 9G micro servo motor can be used for remote control helicopters, micro robot, robot arm and boats. Fit for aLL kinds of R/C Toys and electronics DIY.
• NOTE --- The starting current of the analog servo motor should be over 1A;
