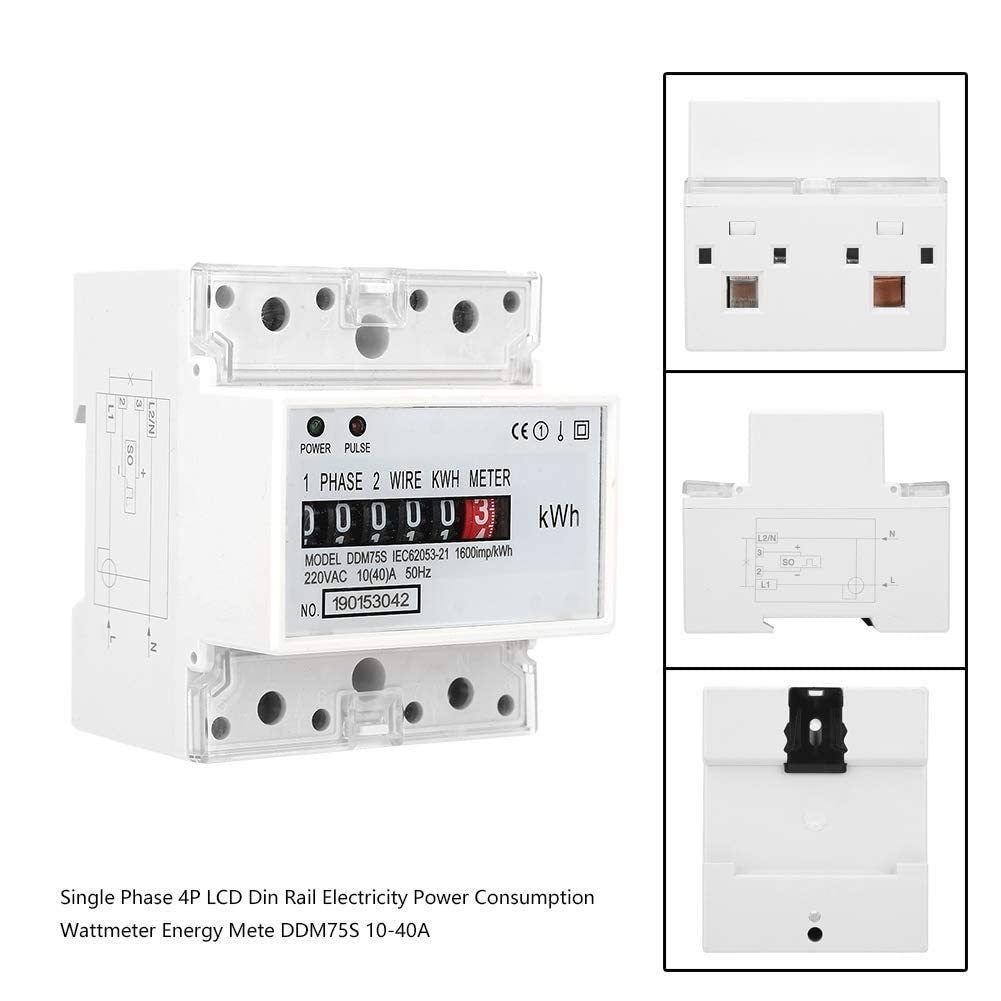

4P Wattmeter Din Rail Electricity Meter, Kilowatt Meter Single Phase Energy Meter,Power Energy Consumption Meter DDM75S 10 to 40A

Features: Small size, light weight, good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880. Standard configuration 5+1(99999.1KWh) digital display. The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864. Double color LED indicates the power status (green) and the energy pulse signal (red). One-way measurement of single-phase two - wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21. Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Extend the terminal cover to protect the use of the security.Specification:Item Type: Din Rail Energy MeterModel: DDM75SVoltage Specification: 220V/230V 50/60HzFrequency: 50/60HzCurrent Specifications: 10(40)A Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KVDisplay mode: (5+1) digital display Installation method: rail installationWeight: 246 g / 8.7 oz(approx.) Package List:1 * Energy Meter

• FLAME RETARDANT MATERIAL: The din rail electricity meter is made of quality flame retardant material, which is sturdy, fire proof, proof to high and low temperature, and wear proof, so that the safety of electricity consumption is guaranteed
• DIN RAIL MOUNTING: The 4p wattmeter is small size, light weight, with good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880
• TWO WIRING METHODS: The single phase energy meter has direct connection operation,two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Extend the terminal cover to the use of the security
• SMART DISPLAY: The kilowatt meter has standard configuration 5+1(99999.1KWh) digital display. Double color LED indicates the power status (green) and the energy pulse signal (red)
• APPLY MORE SCENARIOS: The power energy consumption meter has the ability to accurately track the overall usage of electricity every month. And works prefectly to see where the power is used, can be used to manage the electricity consumption of electrical appliances such as apartments, rental houses, schools, shopping malls, etc
